#include "config.h"
#include "lmic_env.h"
#include "oslmic_types.h"
#include <string.h>
#include "hal.h"
#include <inttypes.h>

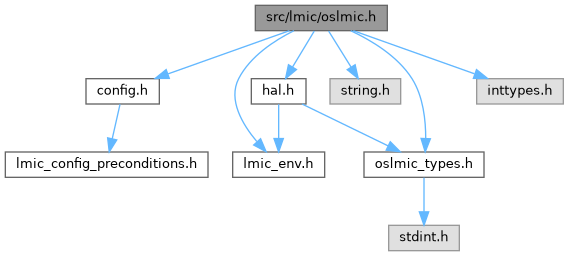

Include dependency graph for oslmic.h:

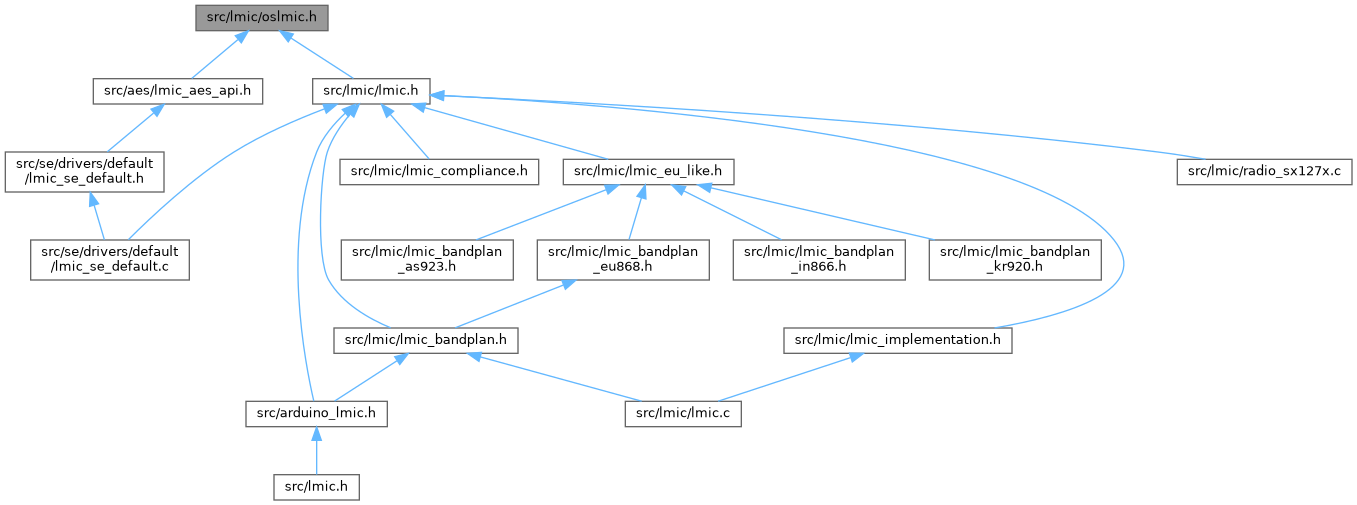

This graph shows which files directly or indirectly include this file:

Data Structures
struct	osjob_t
struct	oslmic_radio_rssi_s

Macros
#define	os_clearMem(pDest, nDest)
	Clear buffer.
#define	os_copyMem(pDest, pSrc, nSrc)
	Copy buffer.
#define	os_getRndU2()
	Get random number (default impl for u2_t).
#define	RX_RAMPUP_DEFAULT (us2osticks(10000))
	RX_RAMPUP_DEFAULT specifies the extra time we must allow to set up an RX event due to platform issues. It's specified in units of ostime_t. It must reflect platform jitter and latency, as well as the speed of the LMIC when running on this plaform. It's not used directly; clients call os_getRadioRxRampup(), which might adaptively vary this based on observed timeouts.

Typedefs
typedef osjobcbfn_t *	osjobcb_t
	the pointer-to-function for osjob_t callbacks
typedef void	osjobcbfn_t(struct osjob_t *)
	the function type for osjob_t callbacks

Functions
bit_t	os_queryTimeCriticalJobs (ostime_t time)
	Return non-zero if any jobs are scheduled between now and now+time.
u2_t	os_rlsbf2 (xref2cu1_t buf)
	Read 16-bit quantity from given pointer in little endian byte order.
u4_t	os_rlsbf4 (xref2cu1_t buf)
	Read 32-bit quantity from given pointer in little endian byte order.
u4_t	os_rmsbf4 (xref2cu1_t buf)
	Read 32-bit quantity from given pointer in big endian byte order.
bit_t	os_setIdleJobFunction (osjob_t *job, osjobcb_t cb)
	set function in idle job (for future use)
void	os_wlsbf2 (xref2u1_t buf, u2_t value)
	Write 16-bit quantity into buffer in little endian byte order.
void	os_wlsbf4 (xref2u1_t buf, u4_t value)
	Write 32-bit quantity into buffer in little endian byte order.
void	os_wmsbf4 (xref2u1_t buf, u4_t value)
	Write 32-bit quantity into buffer in big endian byte order.
int	radio_init (void)
	Initialize radio at system startup.
void	radio_irq_handler (u1_t dio)
	legacy radio IRQ handler
void	radio_irq_handler_v2 (u1_t dio, ostime_t tref)
	Radio IRQ handler.
void	radio_monitor_rssi (ostime_t n, oslmic_radio_rssi_t *pRssi)
	Measure the current broadband RSSI for the current channel.
u1_t	radio_rand1 (void)
	Generate an 8-bit uniformly-distributed integer.

Macro Definition Documentation

◆ os_copyMem

#define os_copyMem	(	pDest,
		pSrc,
		nSrc )

Value:

memcpy(pDest,pSrc,nSrc)

Copy buffer.

Parameters

pDest	[out] receives data to be copied
pSrc	[in] source of data
nSrc	[in] number of bytes of data

Note: Buffers must be non-overlapping. Pointers must be non-NULL.

Referenced by LMIC_SecureElement_Default_aes128Encrypt(), LMIC_SecureElement_Default_decodeJoinAccept(), LMIC_SecureElement_Default_decodeMessage(), LMIC_SecureElement_Default_encodeMessage(), LMIC_SecureElement_Default_getAppSKey(), LMIC_SecureElement_Default_getNwkSKey(), and LMIC_setSession().

Function Documentation

◆ os_setIdleJobFunction()

bit_t os_setIdleJobFunction	(	osjob_t *	job,
		osjobcb_t	cb )

set function in idle job (for future use)

Parameters

[in,out]	job	points to the job block to be updated.
[in]	cb	is the desired new callback.

We make sure that the job is idle, and then we set its function pointer. If the job was not idle, we log a message.

◆ radio_init()

int radio_init ( void )

Initialize radio at system startup.

This procedure is called during initialization by the os_init() routine. It does a hardware reset of the radio, checks the version and confirms that we're operating a suitable chip, and gets a random seed from wideband noise rssi. It then puts the radio to sleep.

Returns: True if successful, false if it doesn't look like the right radio is attached.

Precondition

Preconditions must be observed, or you'll get hangs during initialization.

The lmic_hal_pin_..() functions must be ready for use.
The lmic_hal_waitUntl() function must be ready for use. This may mean that interrupts are enabled.
The lmic_hal_spi_..() functions must be ready for use.

Generally, all these are satisfied by a call to lmic_hal_init_with_pinmap().

◆ radio_irq_handler()

void radio_irq_handler ( u1_t dio )

legacy radio IRQ handler

Parameters

[in] dio is the image of the DIO0..n pins observed by the primary ISR.

The HAL is responsible for detecting transitions on the SX127x DIO pins, and scheduling this routine. This routine must run as part of os_runloop_once(); it must not be called directly from a primary ISR.

This routine is for legacy use only; it is for use by older HALs that cannot capture the interrupt time in the primary ISR.

See also: radio_irq_handler_v2

References radio_irq_handler_v2().

◆ radio_irq_handler_v2()

void radio_irq_handler_v2	(	u1_t	dio,
		ostime_t	now )

Radio IRQ handler.

Parameters

[in]	dio	is the image of the DIO0..n pins observed by the primary ISR.
[in]	now	is the HALs best estimate of the time of teh interrupt.

The HAL is responsible for detecting transitions on the SX127x DIO pins, and scheduling this routine. This routine must run as part of os_runloop_once(); it must not be called directly from a primary ISR.

The radio registers are interrogated, and the interrupt is processed. The radio is then put back to sleep, and the background is scheduled.

Note: If continuous transmit mode is configured, then this routine immediately schedules a new transmit, and never completes to the background.

See also: radio_irq_handler_v2

References LMIC_RADIO_EV_NONE, LMIC_RADIO_EV_RXDONE, LMIC_RADIO_EV_RXTIMEOUT, LMIC_RADIO_EV_RXUNKNOWN, LMIC_RADIO_EV_TXDONE, and LMIC_RADIO_EV_TXUNKNOWN.

Referenced by radio_irq_handler().

◆ radio_monitor_rssi()

void radio_monitor_rssi	(	ostime_t	nTicks,
		oslmic_radio_rssi_t *	pRssi )

Measure the current broadband RSSI for the current channel.

This funtion monitors RSSI for specified number of ostime_t ticks, and return statistics. It first puts the radio into RX continuous mode, waits long enough for the oscillators to start and the PLL to lock, and then measures for the specified period of time. The radio is then returned to idle.

Returns: RSSI expressed in units of dB, offset according to the current radio setting per section 5.5.5 of Semtech 1276 datasheet.

Parameters

nTicks	How long to monitor
pRssi	pointer to structure to fill in with RSSI data.

◆ radio_rand1()

u1_t radio_rand1 ( void )

Generate an 8-bit uniformly-distributed integer.

If there are any bytes remaining in the random buffer, the next byte is returned. Otherwise, sixteen new random bytes are generated, and the first is returned.

Implmementation Notes:: Originaly, the seed buffer was held in the static randbuf[], which is initialized with RSSI noise measurements during initialization. Each time we run out of data, the buffer is used to generate a new key. Formerly we used "any key" but with the reorganization of the code, there's no dedicated key buffer. So instead, we save the seed, and do a CSPRNG using AES in counter mode. Since (in any case) we immediately return the first byte of the buffer, we can replace the first byte with a buffer index, ranging from 1 to 16, which helps us to dole out the data.

References os_wlsbf4().
