Instance data for the LMIC. More...

#include <lmic.h>

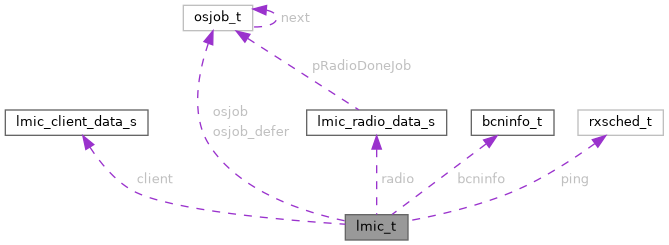

Collaboration diagram for lmic_t:

Data Fields
bcninfo_t	bcninfo
	Last received beacon info.
lmic_client_data_t	client
	client setup data, survives LMIC_reset().
devaddr_t	devaddr
	current device address. Zero means not joined.
u4_t	dn2Freq
	the frequency to use for RX2.
u4_t	freq
	most recent frequency, Hz.
ostime_t	globalDutyAvail
	time when device can send again
ostime_t	lbt_ticks
	ticks to listen for interference before transmitting.
u4_t	netid
	current network id (~0 - none)
ostime_t	nextRxTime
	time of start of next receive
osjob_t	osjob
	the OS job object.
osjob_t	osjob_defer
	the OS job object for events.
rxsched_t	ping
	Data for handling ping scheduling.
lmic_radio_data_t	radio
	the radio driver portable context
ostime_t	rxtime
	time of end of last receive
u4_t	seqnoDn
	FCntDown (downlink seqno).
u4_t	seqnoUp
	FCntUp (uplink seqno).
ostime_t	txend
	time of end of last transmit
u2_t	txrxFlags
	transaction flags (TX-RX combo)

Detailed Description

Instance data for the LMIC.

Field Documentation

osjob_t lmic_t::osjob

the OS job object.

pointer alignment. This is only for use by the LMIC for running the state machine. Don't use it for other purposes.

osjob_t lmic_t::osjob_defer

the OS job object for events.

pointer alignment. This is only for use by the LMIC for injecting deferred callbacks. Don't use it for other purposes.

The documentation for this struct was generated from the following file:
